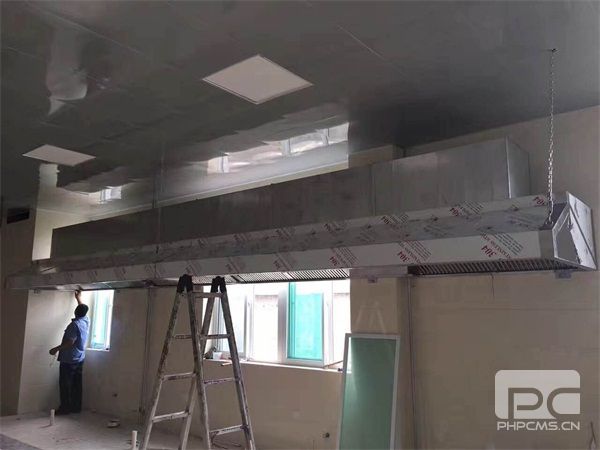

专注通风管道加工·排烟罩

　　1、自垂百叶(自垂百叶式风口具有正压的空调房间自动排气。山东通风管道加工通常情况下靠风口的百叶自重而自然下垂，隔绝室内外的空气交换，当室内气压大于室外气压时，气流将百叶吹开而向外排气，反之室内气压小于室外气压时，气流不能反向流入室内，该风口有单向止回作用。)

　　1, since the vertical shutter (self vertical air inlet, with positive pressure air conditioning room, automatic exhaust. Shandong usually rely on ventilation pipe plus louver tuyere and the weight of natural sag, isolated from indoor and outdoor air exchange, when the indoor pressure is greater than the outdoor air pressure, air will blow and exhaust louver outward, and indoor air pressure less than the outdoor air pressure, air flow can not reverse the air into the room, a check).

　　2、活动百叶(双层百页风口一般作为送风口，也可直接与风机盘管配套使用，广泛用于集中空调系统的末端，还可以与对开多叶调节阀,用以调整风量。单层百叶风口可调上下风向，回风口可与风口过滤网合用，节片角度可以调节,叶片间有ABS塑料固定支架。固定式过滤网在清洗时可由滑道上取出过滤网，清洗后再从滑道推入后继续使用。)

　　2, blind (double hundred pages in general as air outlet, can also be used directly, and fan coil matching is widely used in the end, the central air conditioning system can also with multi leaf off valve to adjust the air volume. Single louver adjustable upper and lower wind, the air inlet can be combined with air filter, proglottis angle can be adjusted, the blade between ABS plastic bracket. When the fixed filter screen is cleaned, the filter screen can be taken out from the slideway, and then used again after being pushed from the slideway

　　3、防雨百叶风口(单层防雨百叶风口,双层防雨百叶风口，自垂百叶防雨风口)

　　3 、 rainproof louver (single layer rainproof louver, double layer rainproof louver, self raised louver rainproof air outlet)

　　4、风口调节阀(散流器调节阀，百叶风口调节阀)

　　4 、 air outlet control valve (diffuser regulator valve, louver valve)

　　5、散流器(方、矩形散流器,LFK-7活叶条缝型散流器，条形直片散流器，扁叶散流器)

　　5, the diffuser (square diffuser, LFK-7 hinge slot diffuser, bar straight vane diffuser, flat leaf Sanliu device)

　　6、固定百叶(侧壁格栅式风口，可开式侧壁格栅风口)

　　6, fixed shutter (side wall grille type, can open side wall grille tuyere)

　　7、风口过滤器(铝合金过滤器，网式钢制过滤器)

　　7 、 air outlet filter (aluminium alloy filter, mesh type steel filter)

　　8、平面加固是将加固支撑按需加强风管的边长用砂轮切割机下料，切断DN15镀锌管。在镀锌管两端，各放入60mm长圆木条。用夹钳将圆木条固定在镀锌管两端。

　　8, plane reinforcement is to strengthen the support as needed, strengthen the side length of the wind pipe, use grinding wheel cutting machine blanking, cut off the DN15 galvanized pipe. At both ends of galvanized pipe, each into oblong wood 60mm. Clamp the round bar at the ends of the galvanized pipe with tongs.

　　按设计要求用钢尺在风管面确定加强点。边长≧2000mm需增加外加固，外加固采用∠30*3以上角钢制作成抱箍状，箍紧风管。

　　According to the design requirements for steel pipe surface determined to strengthen the point in the wind. The length of more than 2000mm to increase the external reinforcement, plus solid angle 30*3 angle made by the hoop, hoop wind pipe.
