济南排烟管道破损该如何应对?

来源:http://www.jnqsg.com/     发布时间:2020-07-03

排烟设备的畅销推动了排烟设备技术的发展,使得排烟设备的安装技术越来越好。然而,不可避免的排烟管道在安装时会出现破损问题,下面由济南排烟管道的相关人员介绍一下如何何应对排烟管道破损问题:
The popularity of smoke exhaust equipment promotes the development of smoke exhaust equipment technology, which makes the installation technology of smoke exhaust equipment better and better. However, it is inevitable that the smoke exhaust pipe will be damaged during installation. The following is how to deal with the problem of smoke exhaust pipe damage by the relevant personnel of Jinan smoke exhaust pipe:
如果在管道外就用专用的密封胶就可以修补,管道外表面的铝箔层发生破损,而玻纤保温层未发生损坏,则可选用一片合格的铝箔片进行管道铝箔表面的修补。
If the special sealant can be used outside the pipeline, the aluminum foil layer on the outer surface of the pipeline is damaged, but the glass fiber insulation layer is not damaged, a piece of qualified aluminum foil can be selected to repair the aluminum foil surface of the pipeline.
如果在排烟设备安装时发现破损已达到玻纤保温层时,则可将破损的地方切割下来,另选一块完好的板材,根据切割下来的玻板尺寸切割好,然后在四周接口上涂上修补胶及粘胶剂,根据工艺规范进行密封,在排烟设备正常工作时就要经常检查以免耽误工作。
If it is found that the damage has reached the glass fiber insulation layer during the installation of the smoke exhaust equipment, the damaged part can be cut down, and another intact plate can be selected. According to the size of the cut glass plate, the repair glue and adhesive are coated on the surrounding interface, and the sealing is carried out according to the process specification. When the smoke exhaust equipment works normally, it should be checked frequently to avoid delay in work.

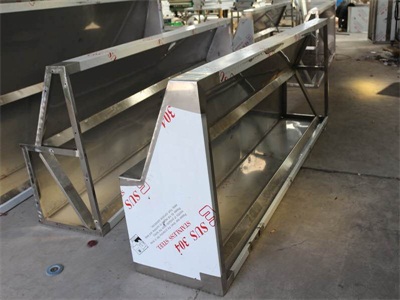

济南排烟管道
只有正常运行的排烟设备才能为人类服务,这就要求要及时检查设备是否破损。如果想要了解更多的话,可以咨询我们排烟管道公司,我们会为你服务的!
Only the normal operation of smoke exhaust equipment can serve human beings, which requires timely inspection of whether the equipment is damaged. If you want to know more, you can consult our smoke exhaust pipe company, we will serve you!
排烟系统中输送气体的管道称为风管,它把系统中的各种设备或部件连成了一个整体。为了提高系统的经济性,应合理选定风管中的气体流速,管路应力求短、直。风管通常用表面光滑的材料制作,如:薄钢板、聚氯乙烯板,有时也用混凝土、砖等材料。
In the smoke exhaust system, the pipeline for conveying gas is called air duct, which connects various equipment or components in the system into a whole. In order to improve the economy of the system, the gas velocity in the air duct should be selected reasonably, and the pipeline should be short and straight. The air duct is usually made of smooth surface materials, such as thin steel plate, PVC plate, and sometimes concrete, brick and other materials.
为了防止大气污染,当排出空气中有害物量超过排放标准时,必须用净化设备处理,达到排放标准后,排人大气。净化设备分除尘器和有害气体净化装置两类。
In order to prevent air pollution, when the amount of harmful substances in the discharged air exceeds the emission standard, it must be treated with purification equipment, and then discharged into the atmosphere after reaching the emission standard. Purification equipment is divided into two categories: dust remover and harmful gas purification device.
标准直管由流水线上直接压制成连体法兰。非标直管、弯头、三通、四通、配件等下料后,在单机设备上完成TDF法兰成型。法兰角由模具直接冲压成型,安装时卡在四个角即可。
The standard straight pipe is directly pressed into a flange on the assembly line. After cutting the non-standard straight pipe, elbow, tee, cross, accessories, etc., TDF flange forming is completed on single equipment. The flange angle is directly formed by die stamping and can be clamped at four corners during installation.

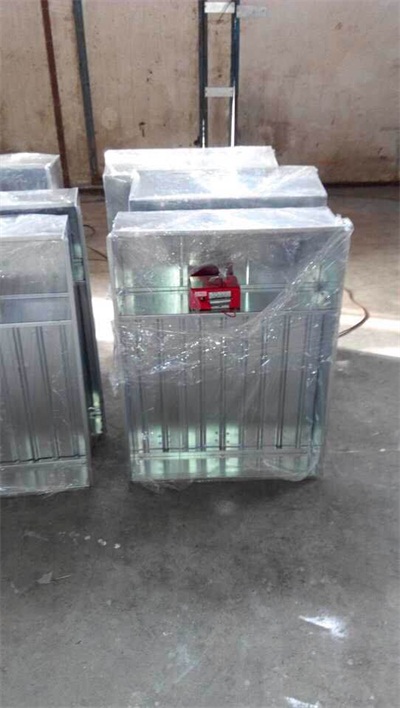

济南排烟管道
法兰间的连接用法兰卡,由镀锌钢板制作,经法兰卡成型机成型后切割成统一的尺寸供安装连接使用。TDF共板法兰因与管道钢板连成一体,不必像角钢法兰般打孔铆接,在两节管道的连接上用专用法兰卡,四角加90度法兰角后用螺栓连接。操作简单,提高了效率,外观平整、光滑,尺寸准确,互换性强,产品的质量稳定。
Flange clamp is used for connection between flanges, which is made of galvanized steel plate and cut into uniform size after forming by flange card forming machine for installation and connection. Because TDF common plate flange is connected with pipe steel plate, it is not necessary to punch and rivet like angle steel flange. Special flange clamp is used for the connection of two sections of pipes, and bolts are used after adding 90 degree flange angle to four corners. Simple operation, improved efficiency, smooth appearance, accurate size, strong interchangeability and stable product quality.
