一般市面上客户对于排烟罩的要求整理

来源:http://www.jnqsg.com/     发布时间:2023-01-20

(1)油烟吸收率应大于95%采用同诳导流围护装置
(1) The absorption rate of oil fume shall be greater than 95%, and the same diversion enclosure shall be used
(2)围护结构应配有铰接式检查门,以便于卫生清洁及观察
(2) The enclosure shall be equipped with hinged inspection doors to facilitate sanitary cleaning and observation
(3)设备全部由不锈钢制成所有联结处为防水防蒸汽防油烟
(3) The equipment is all made of stainless steel, and all joints are waterproof, steam proof and oil smoke proof
(4)风罩嵌入吊顶内两者之间设有不锈钢装饰板用厚度1.2mm的不锈钢板制造易拆卸嵌入深度≥100mm
济南排烟罩
(4) The fan hood is embedded in the ceiling. There is a stainless steel decorative plate between them. It is made of 1.2mm thick stainless steel plate. It is easy to remove. The embedded depth is ≥ 100mm
(5)全部罩体用厚度大于1.0mm的不锈钢板制造
(5) All covers are made of stainless steel plate with thickness greater than 1.0mm

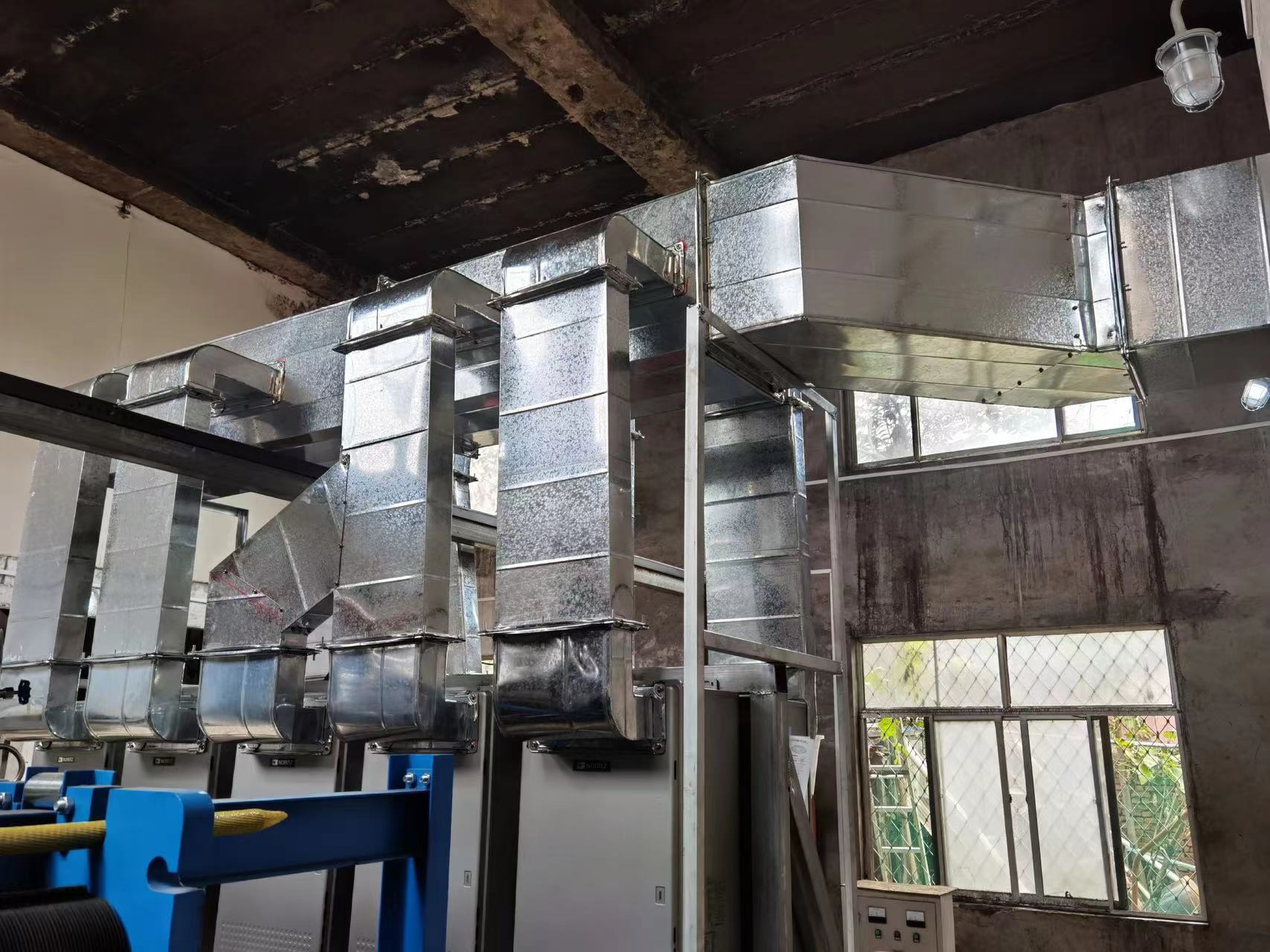

(6)通风管用1.0镀锌板制成设有不锈钢铁风量调节阀
(6) The ventilation pipe is made of 1.0 galvanized sheet and equipped with stainless steel iron air volume regulating valve
(7)照明设备是防溅防水内凹型的分布于每1000mm距离并应将所有电线套于导管中用接驳箱连接照度装置大于等于600lux采用节能芝光管灯,统一的电力接口
(7) The lighting equipment is splash-proof, water-proof and concave, distributed every 1000mm away, and all wires shall be sheathed in the conduit. The lighting device shall be connected with a junction box, and the illumination device shall be greater than or equal to 600lux. Energy-saving fluorescent tube lamp shall be used, and the uniform power interface shall be used
(8)风罩竖板带有一体环绕的自排装置排放槽易于清洗油烟蒸汽排放管为不锈钢制并联至风罩的全自动自清洁装置
(8) The vertical plate of the fan hood is equipped with an integrated self-cleaning device. The exhaust tank is easy to clean the oil fume and steam. The exhaust pipe is made of stainless steel and connected to the fan hood with a fully automatic self-cleaning device
